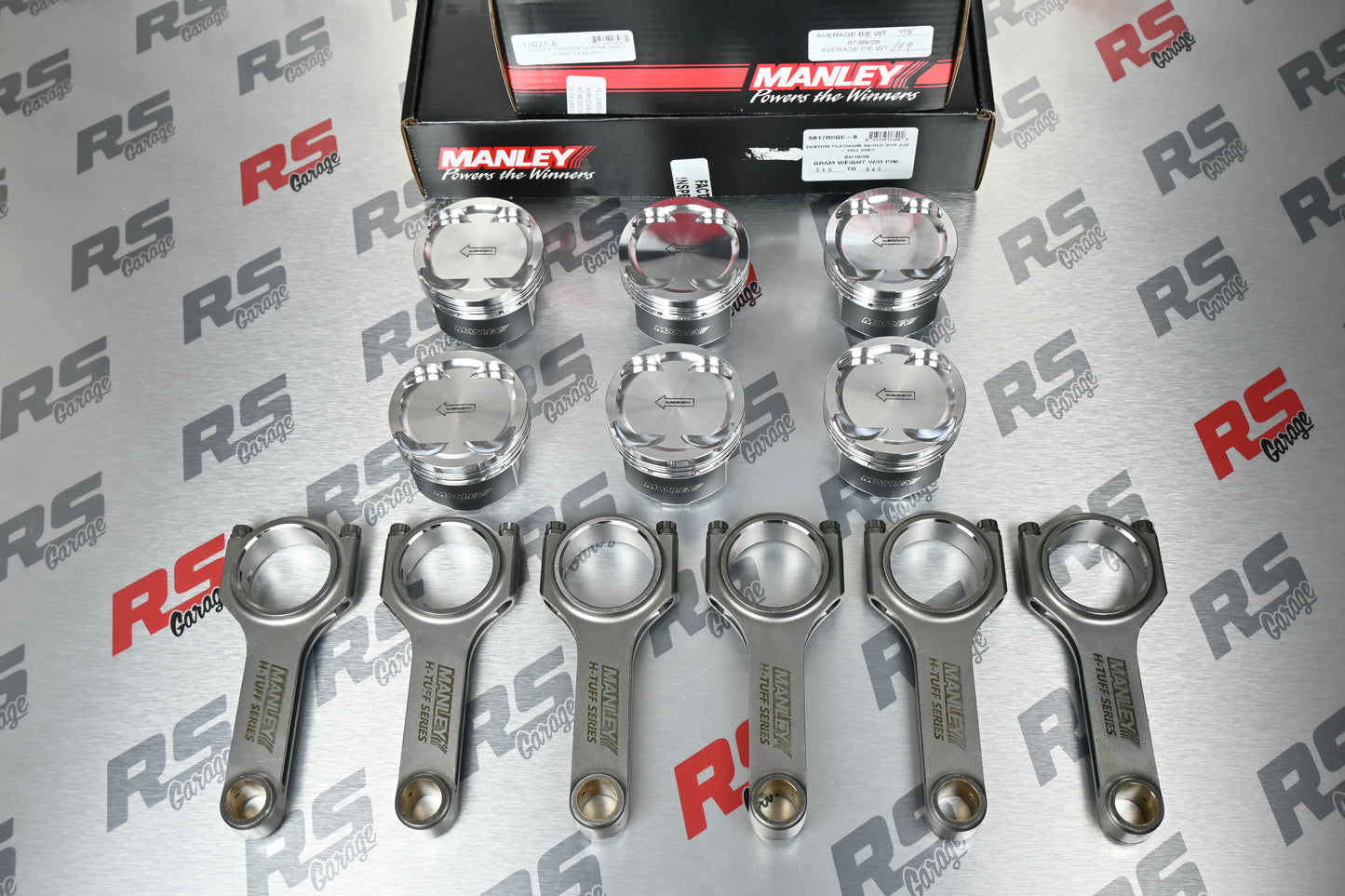

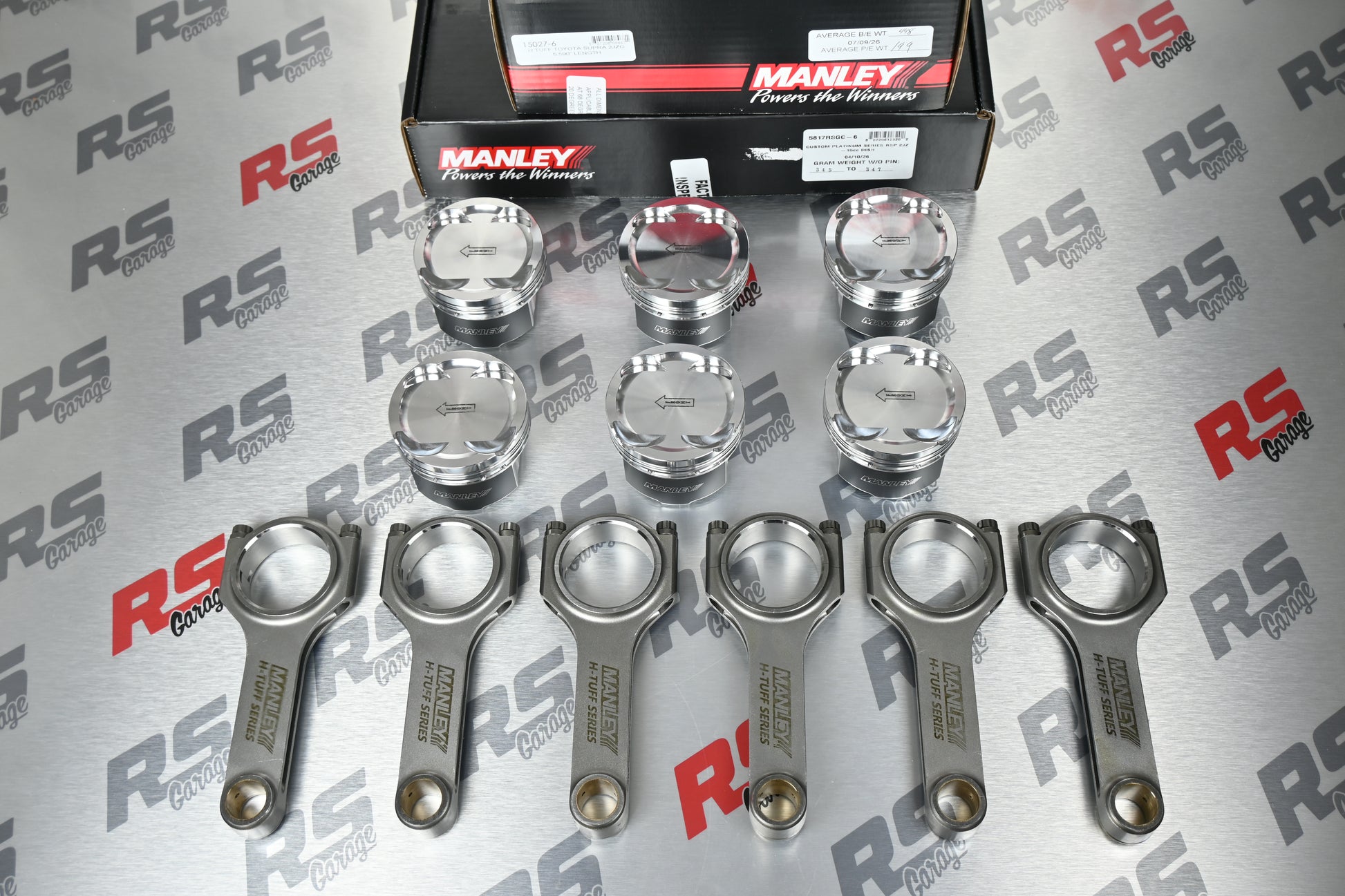

Key Specifications:
Application: Toyota 2JZ-GTE / 2JZ-GE
Series / Build: Heavy Duty (HD) Series
Bore Size: 3.406" (86.5mm)
Compression Height: RS Garage Custom Compression Height
Dish Volume: -15.0cc
Compression Ratio: 8.5:1 CR
Wrist Pin: HD 9310 Material | 0.866" (22mm) Dia. x 2.250" Length x 0.250" Heavy Wall (0.060" Offset)
Skirt Coating: Friction-Reducing Skirt Coating
Pressure Balance: Integrated Pressure Balance Groove for High-Boost Ring Seal
Manley Rod Bolt Recommended Torque w/30wt. Oil: 60 ft./lbs.
Recommended Rod Bolt Stretch w/30wt. Oil: .0058"-.0062"

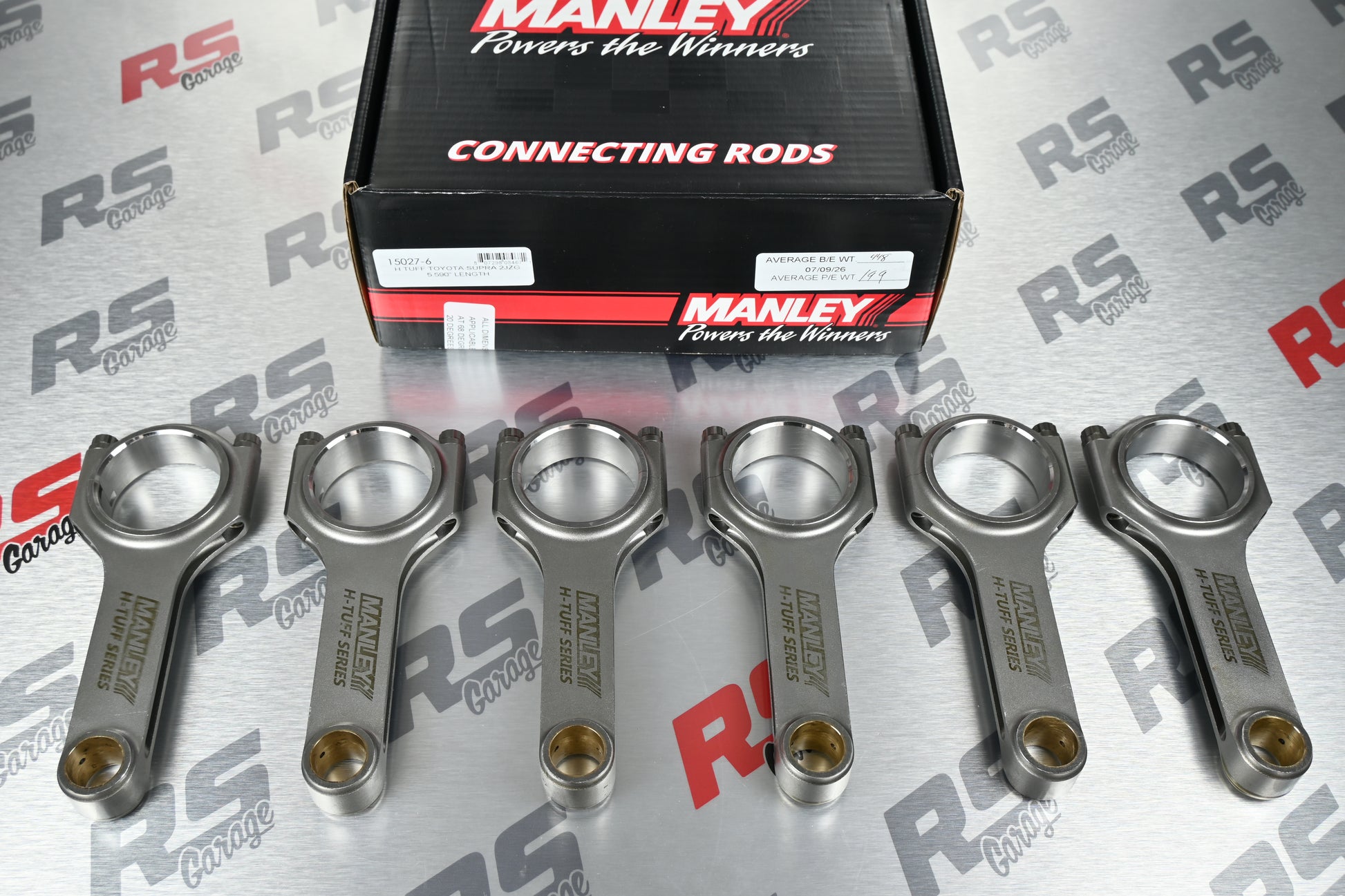

Manley "H Tuff" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled.
Features:
H-Tuff Series with heavier beam for higher boost applications
Manufactured from 4340 forgings
Heat treated, stress relieved, shot peened and 100% individually magnafluxed
Weight matched sets + 1.5 grams
Cap fasteners are 3/8" ARP 2000 for the”H” Beam and 3/8" ARP Custom Age 625+ for the H-Plus
