RSG 2JZ High-Capacity Rear Sump Oil Pan ("Only Pan")

Complete Protection Against 2JZ Oil Starvation

TheRSG "Only Pan"is a high-capacity rear sump oil pan engineered specifically for the MK4 Supra and Lexus SC300Reliable oiling is the foundation of any high-horsepower 2JZ buildWhether you're running on the street, strip, or circuit, high G-forces cause oil sloshing and momentary pressure drops that kill bearings

This USA-made rear sump kit increases oil volume by over 40% and keeps oil locked directly at the pickup

Key Features

• 40%+ Increased CapacityHolds8.2 quarts (7.7L)of oil to lower temperatures and stabilize oil pressure under heavy load

• Custom-Flow Pickup TubeIncludes a heavy-duty pickup engineered specifically for this pan's internal geometry

• Integrated BafflingPrecision aluminum swing-door baffles trap oil in the sump during hard acceleration, braking, and cornering

• OEM Dipstick CompatibleMeasures right at the upper factory fill mark with an 8-quart fill (reads just above low at 7 quarts)

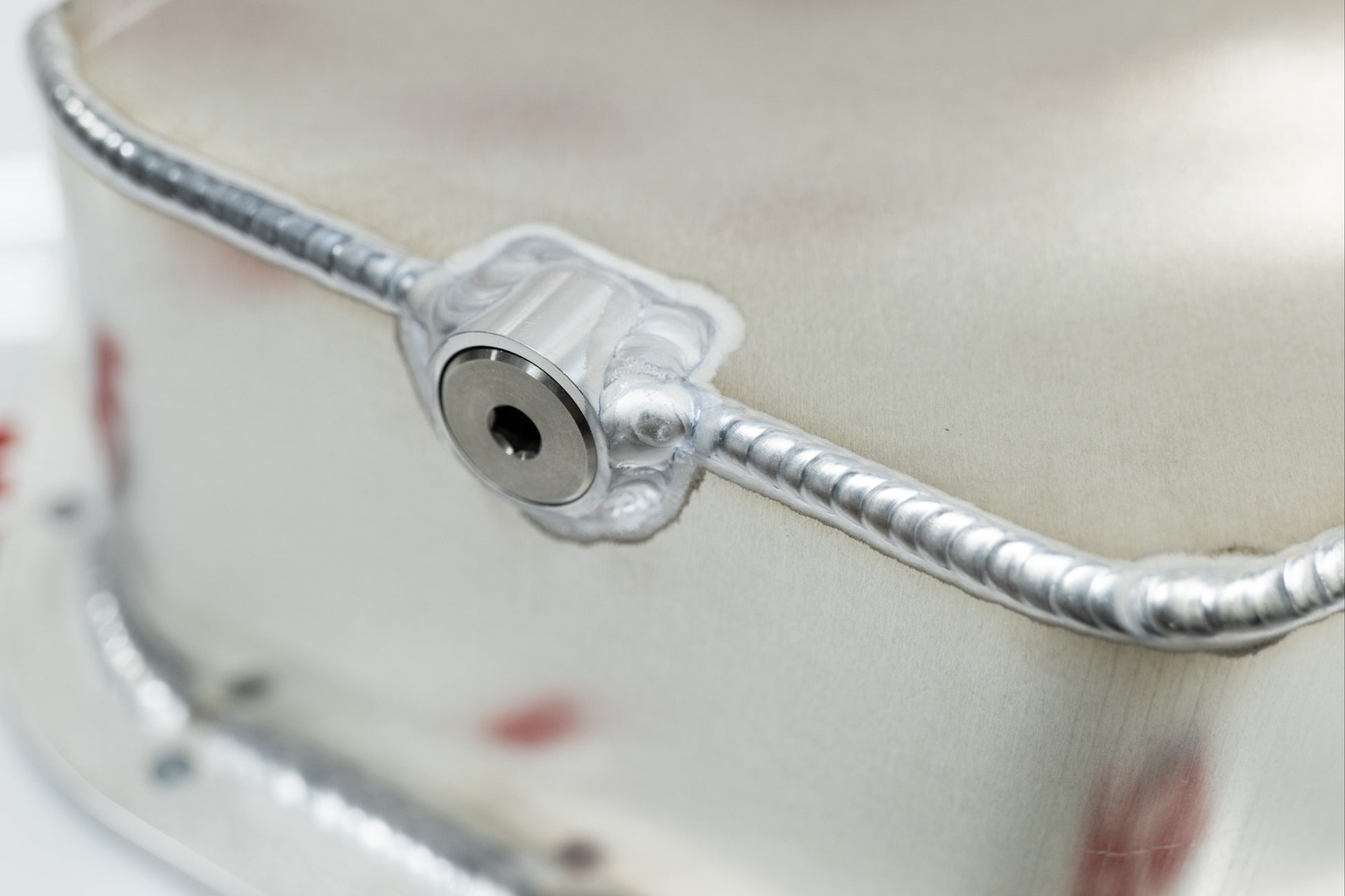

• Service FriendlyBuilt with dual threaded jack-screw inserts for easy removal during service, plus a magnetic drain plug

Technical Specifications

Exact Vehicle Compatibility

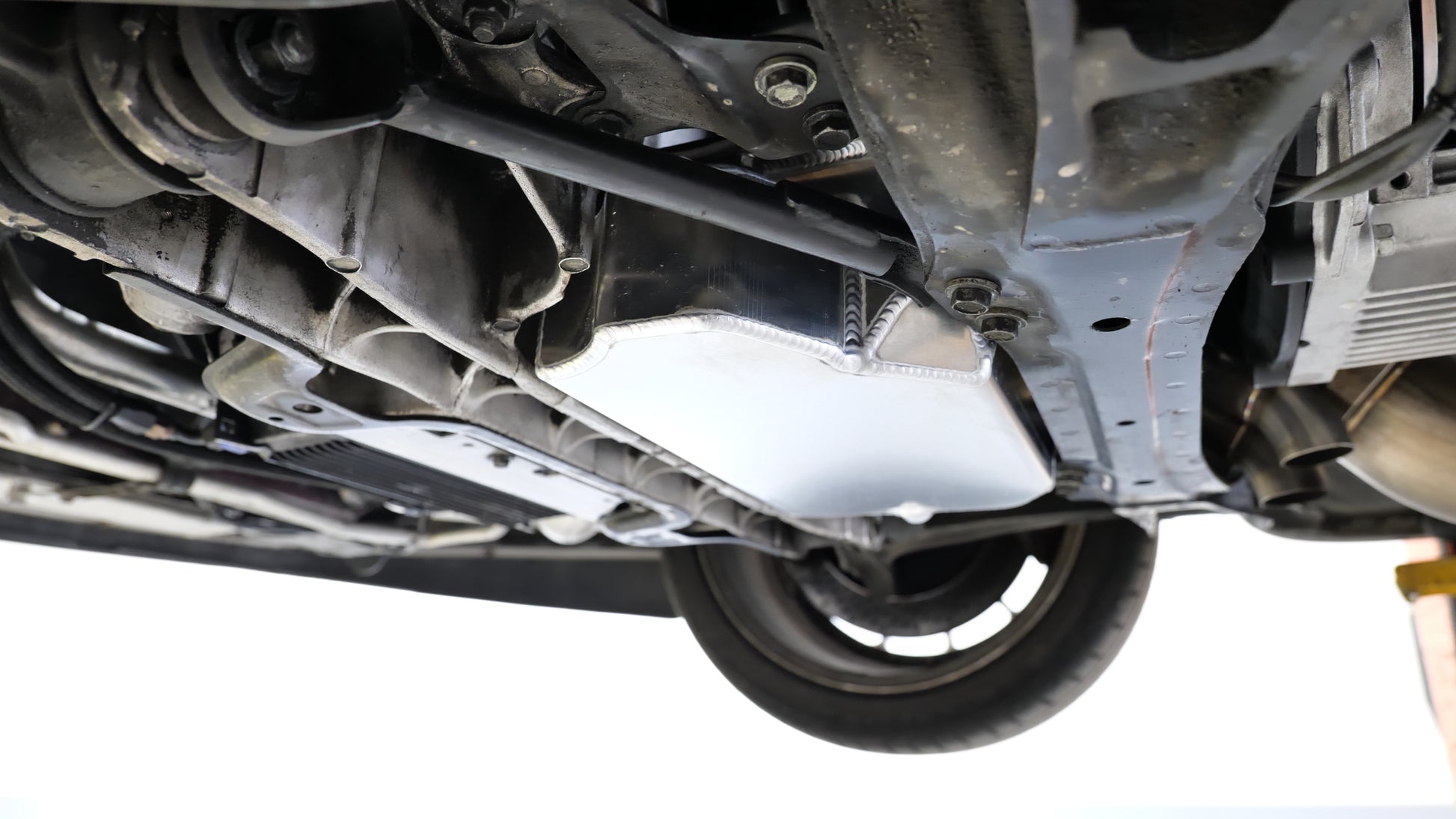

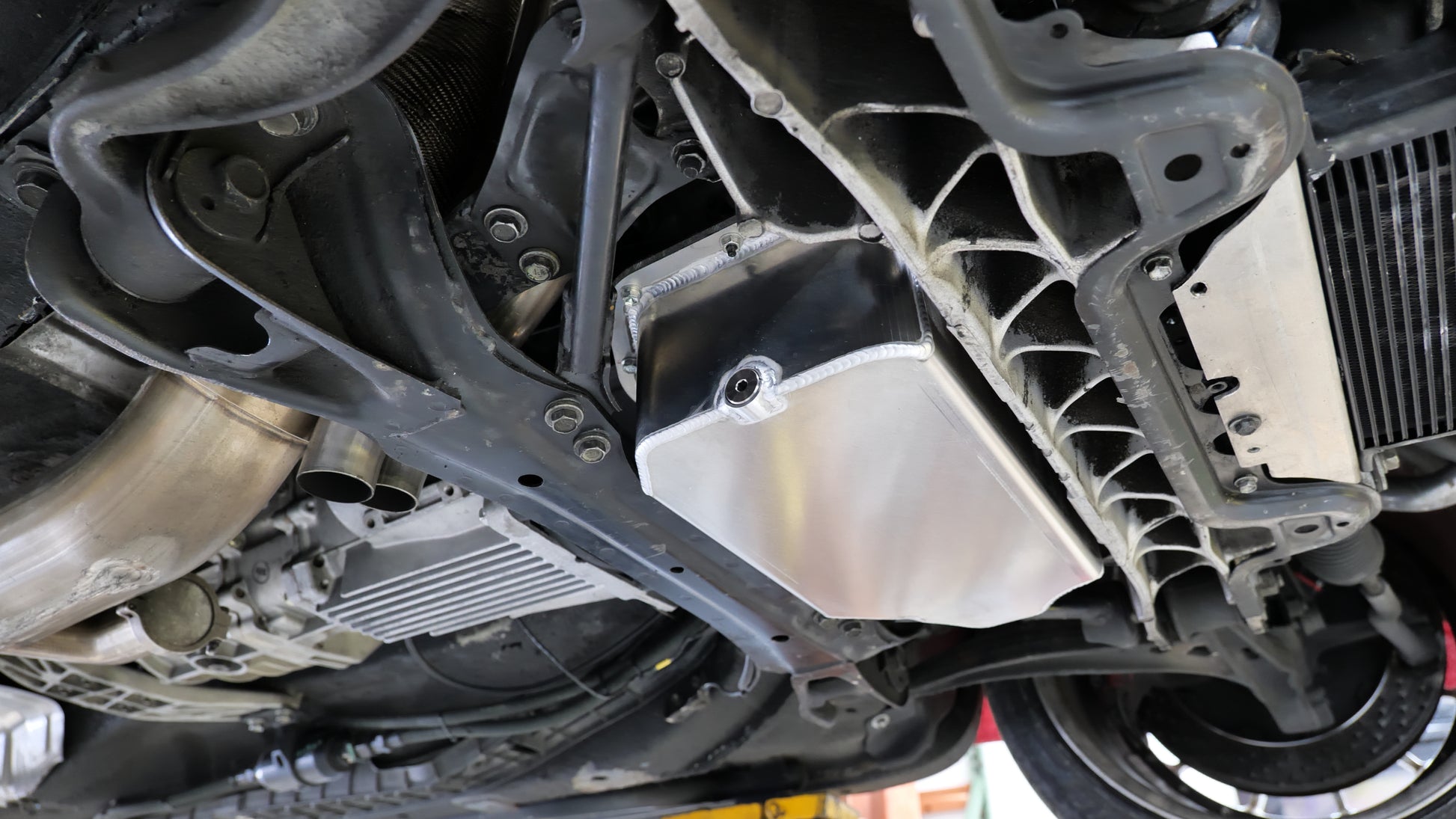

Direct bolt-on fitment for rear-sump factory chassis

• Toyota Supra MK4 (1993–1998)2JZ-GTE / 2JZ-GE

• Lexus SC300 (1992–2000)2JZ-GE / 2JZ-GTE

What’s Included

• (1) RSG High-Capacity Rear Sump Oil Pan

• (1) Custom Heavy-Duty Pickup Tube

• (1) Internal Aluminum Swing-Door Baffle System

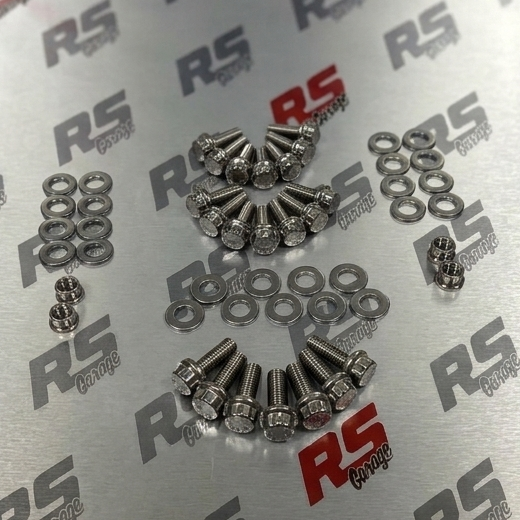

• (1) McMaster/ARP Hardware Kit

• (1) Magnetic Drain Plug

Why the RS Garage "Only Pan"?

No monthly subscription - just raw performance, clean OEM-like dipstick calibration, and maximum capacityThis is the ultimate oiling solution for your Supra or SC300
