PHR Oil Temp Crank Case Pressure Adapter Kit for Supra MKIV 2JZ-GTE PHR 01011081

Options:

• Temp sensor is not included.
• Crankcase Pressure Sensor Not included.

Description:

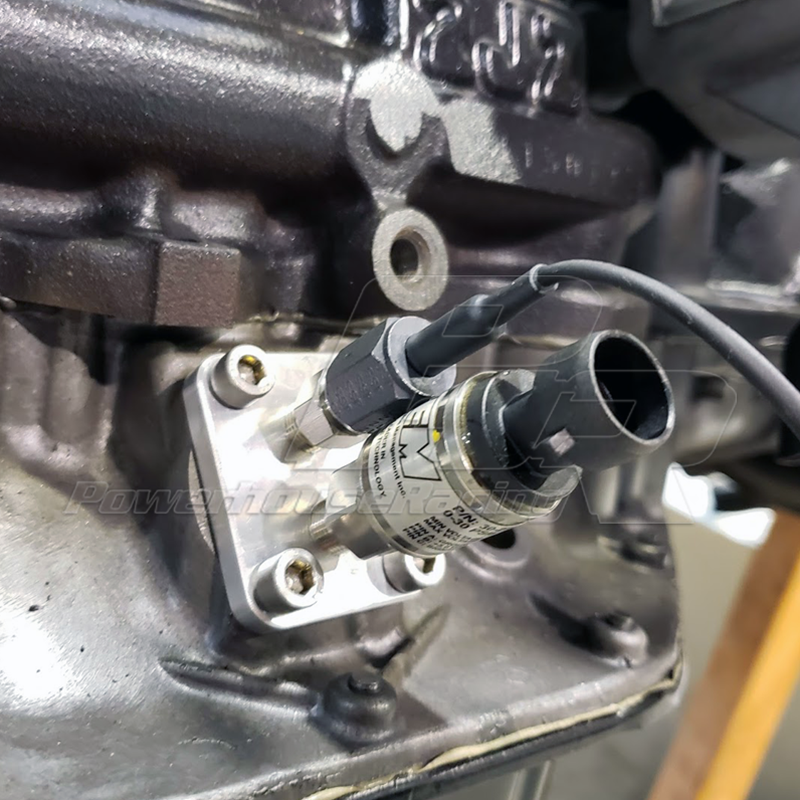

Adapts OEM oil level location to accept Oil Temp Probe and 1/8" NPT plug or Crank Case Pressure Sensor

Powerhouse Racing is proud to offer a multi-functional solution for adding an oil temperature sensor to your 2JZ oil pan. We believe this is the best location to give you the most reliable data when monitoring your oil temperature!

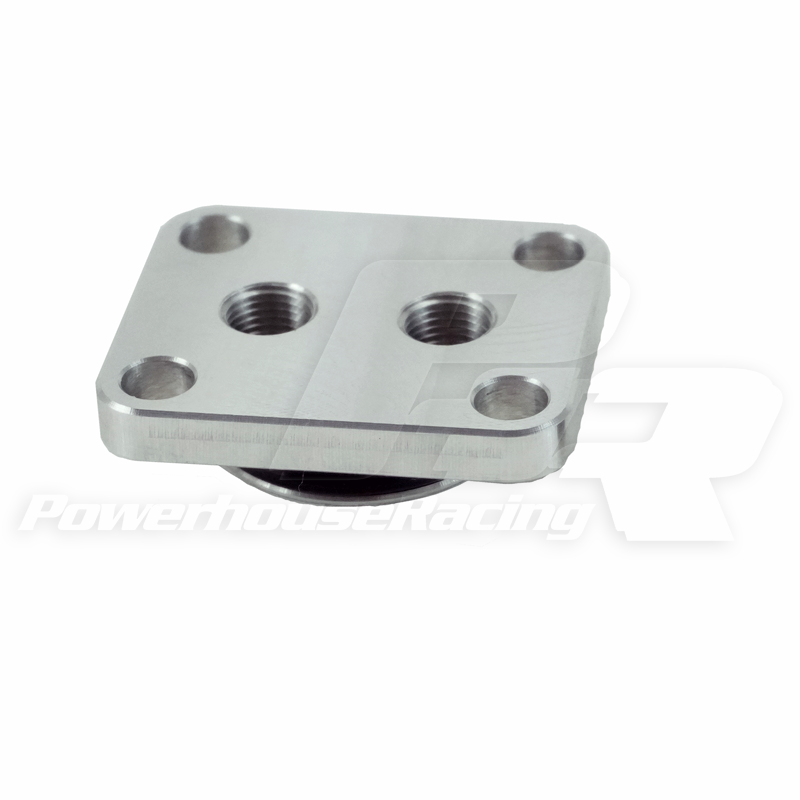

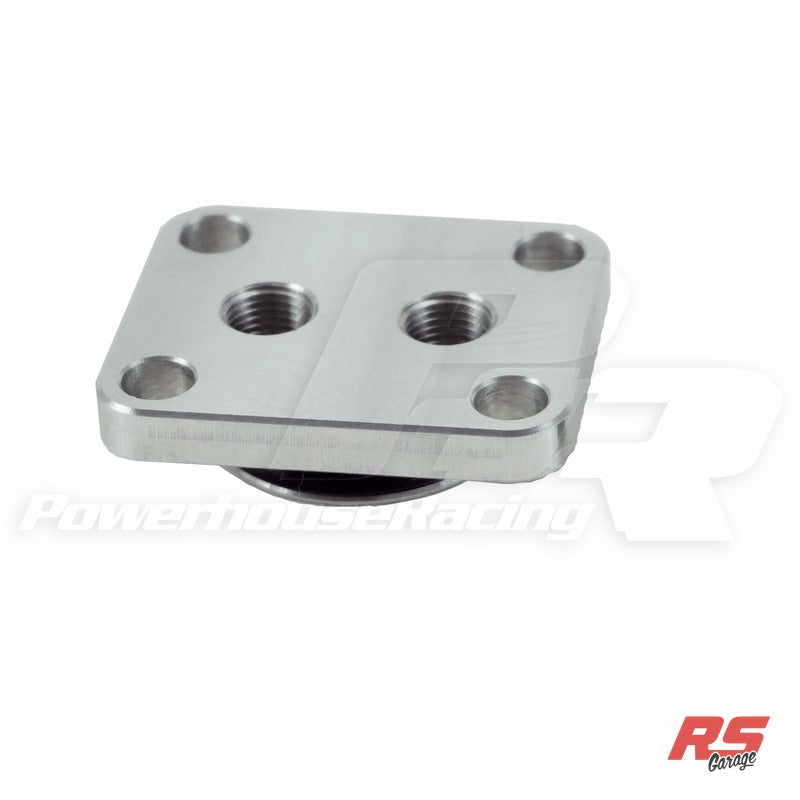

The CNC machined aluminum bracket includes two ports. The first port will be fitted with a temperature probe and the additional port will be optioned to allow you to either plug the additional port or add a AEM 2 Bar sensor to monitor crankcase pressure from the same location.

Compatible with both front sump and rear sump 2JZ oil pans.

WARNING: THIS REQUIRES THE REMOVAL OF THE OEM OIL LEVEL SENSOR. We highly recommend adding an oil pressure sensor to monitor your engine health. We have multiple solutions for this.

The PHR Crank Case Pressure/Oil Temp Adapter Kit includes:
CNC Machined Aluminum Plate w/ o-ring
(4) M6 mounting bolts
 DTM Connector
1/8" NPT Plug
Note: Can be used as a block-off plate if you exclude the sensors
