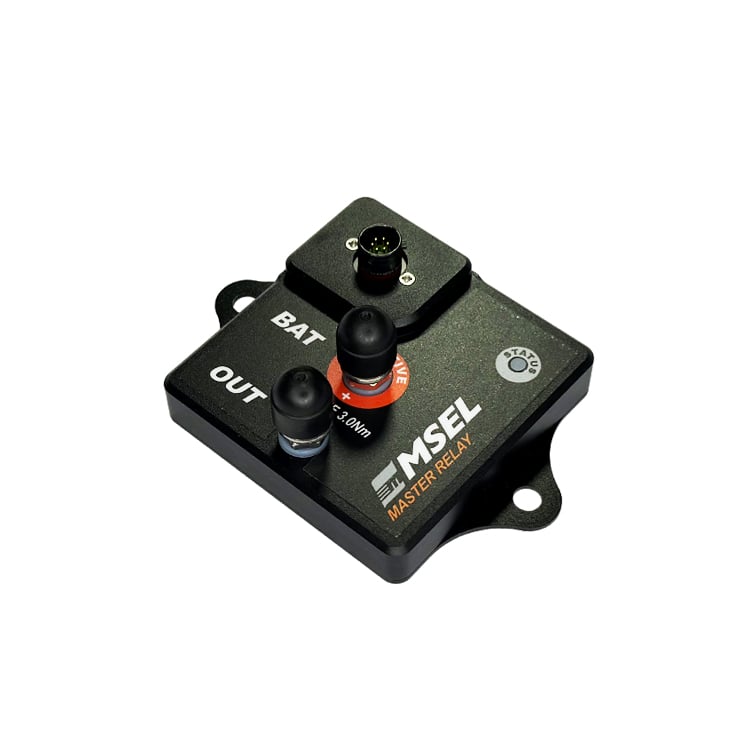

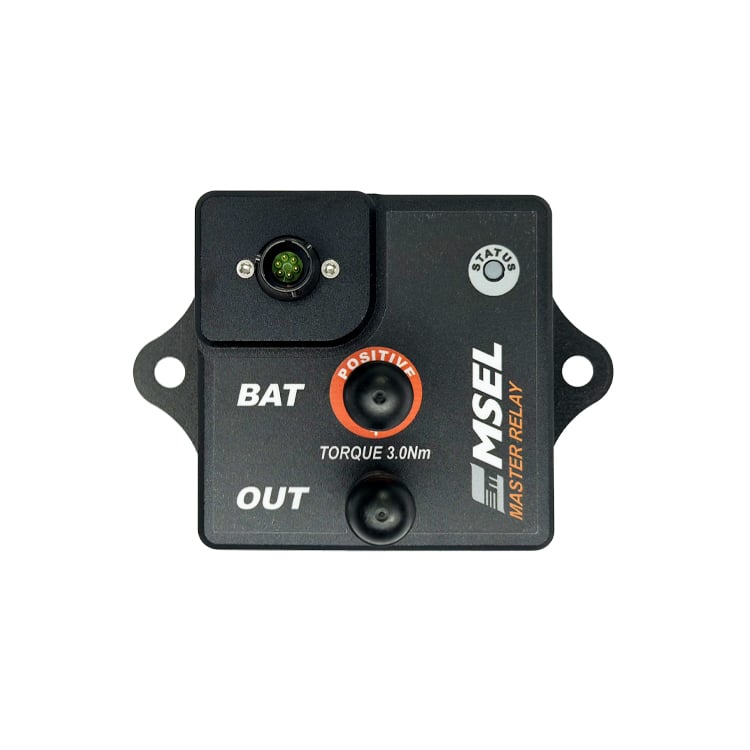

MSEL Solid State Battery Isolator Professional with Souriau connector.
Built with safety in mind, MSEL SSR Isolators have been designed with the sole purpose of living in a motorsport environment. Utilizing solid state switching components, the Master Relay has excellent temperature resistance, as well as an aluminum enclosure that is lightweight and robust in even the harshest motorsport environment.
Both race car battery isolators are identical and offer the same functionality aside from the connection type. The Club Level isolator includes a flying lead harness to be terminated to the connector of your choosing.
- Meets all the FIA requirements for a motorsport battery isolator
- Solid state using MOSFET technology with no moving parts
- 200A continuous current at 25 degrees C (1000A peak current)
- Alternator discharge before disconnection of the battery to avoid load dump which can damage electronics in the vehicle
- Switches positive
- LED status light
- Souriau 8STA connector for switched inputs, ground, CAN and output trigger
- Built in short protection
- Supply voltage between 8 and 30V
- 0.001A current draw in standby mode
- CNC aluminium case sealed to IP63
- 115g
CAN-bus messaging for logging, diagnostics and safety:
- Reason for shut down (internal or external switch, over current, over temperature, CAN command to shut down etc)
- Current passing through Master Relay
- Voltage at Master Relay output
- Voltage at Battery
- Shut down command for other devices on CAN
