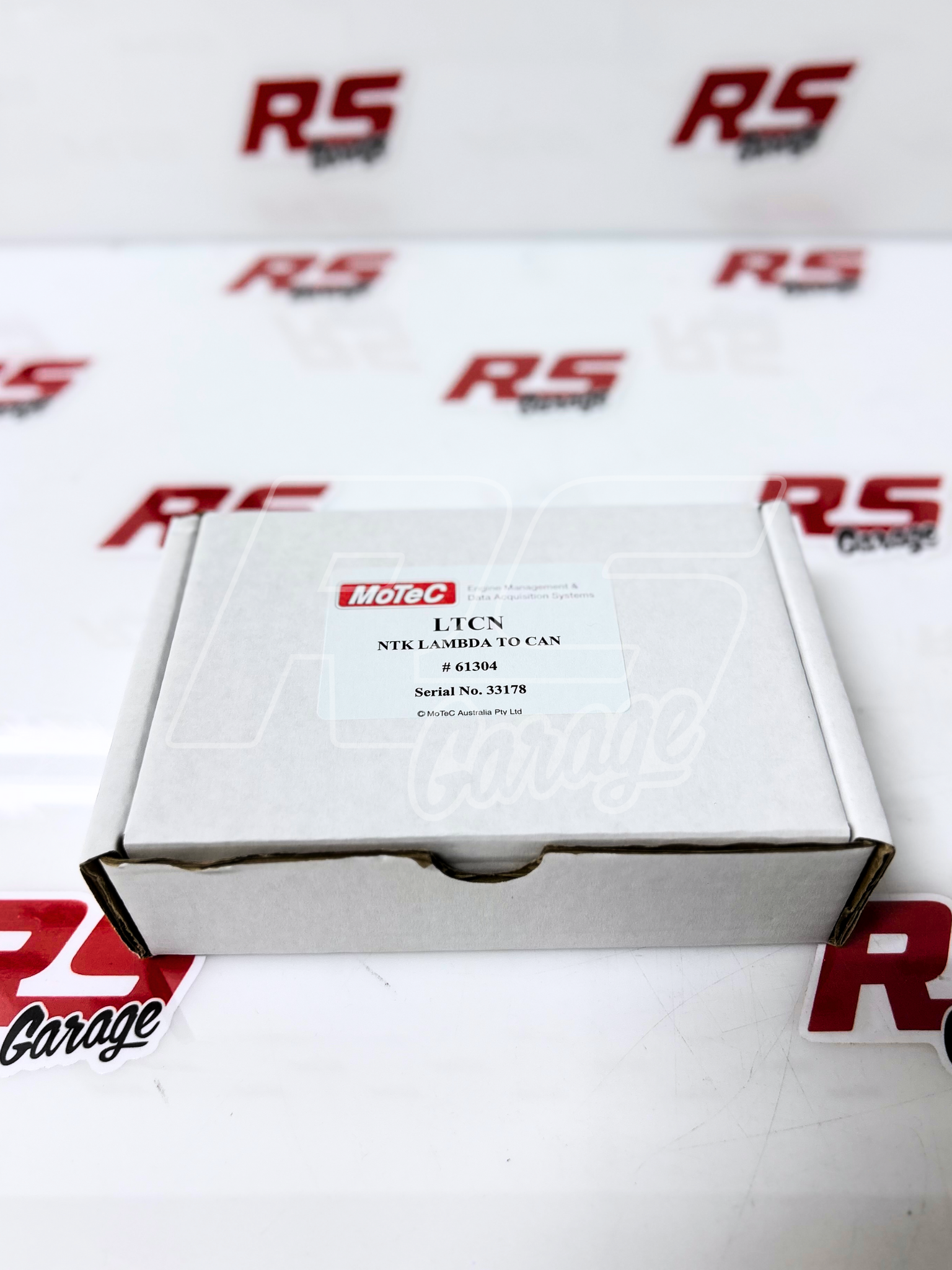

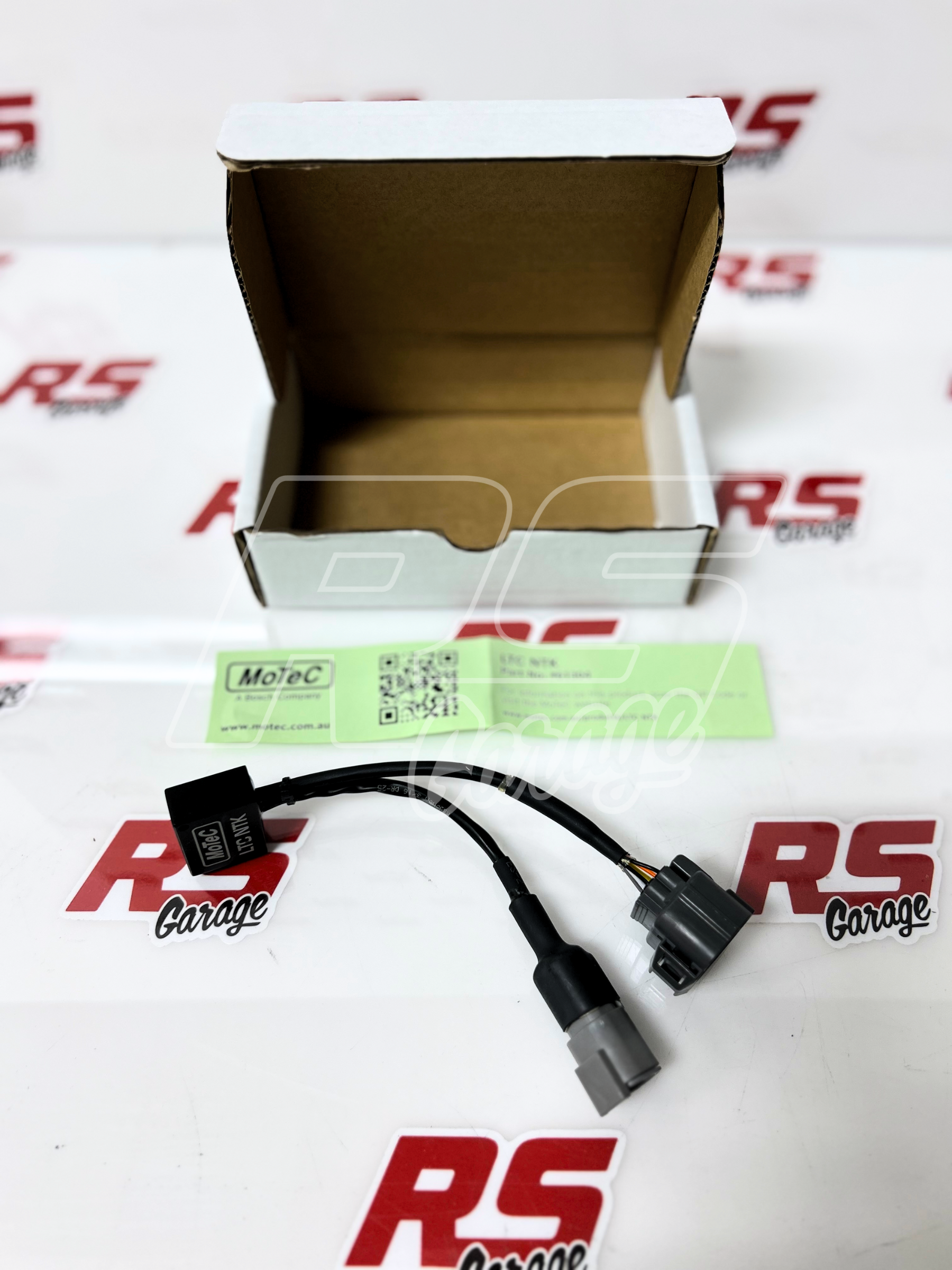

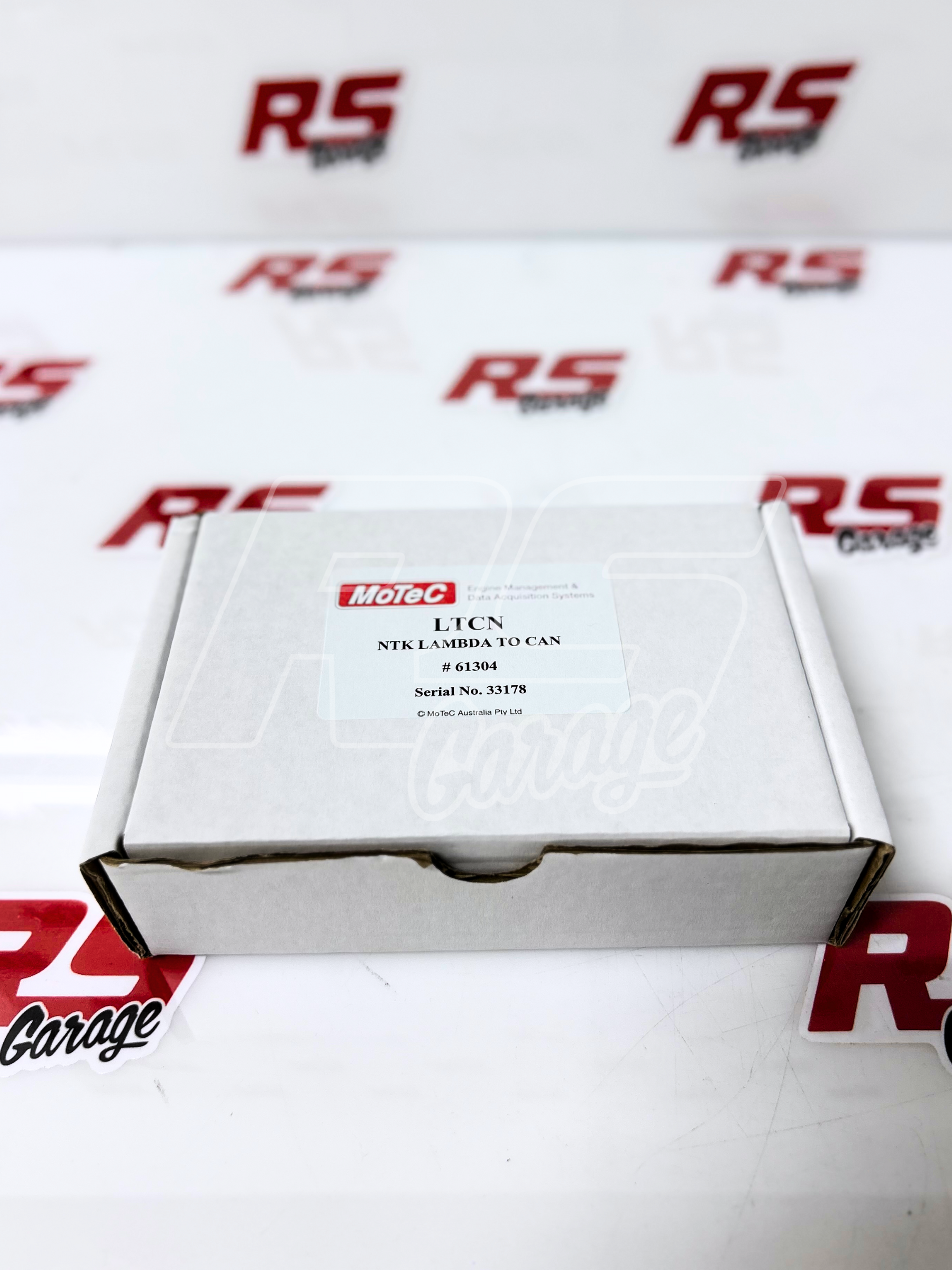

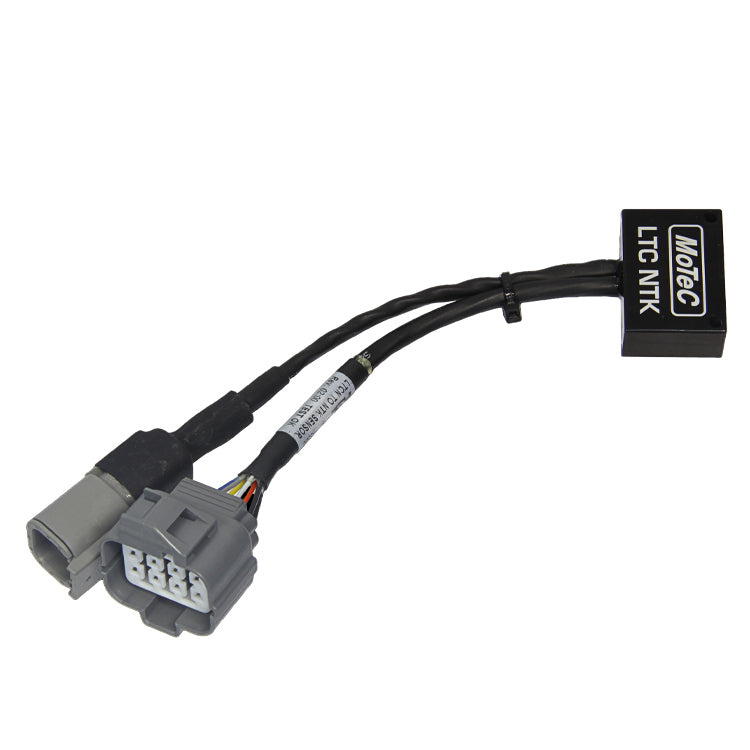

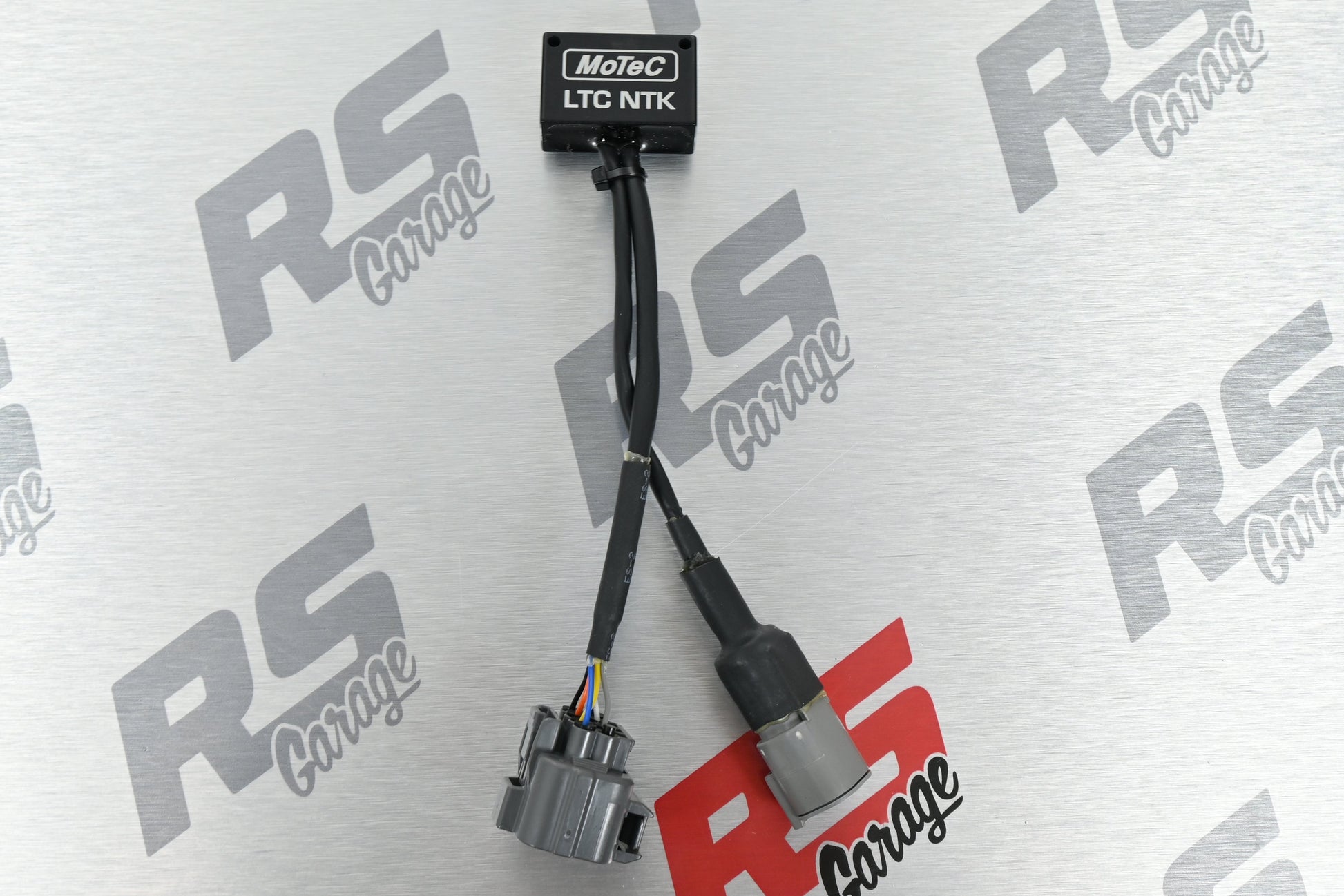

MoTeC Lambda to CAN (LTC-NTK)

MoTeC’s LTC NTK (Lambda to CAN) modules monitor, control and diagnose NTK Lambda sensors, transmitting readings on a CAN bus. When multiple LTC NTKs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

Sensor’s compatibility:

• NTK, 5 wire sensor

Inputs/Outputs:

• 1 x NTK Lambda sensor (MoTeC #57007)
• Power supply voltage 11 V – 16 V
• Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A – 1 A and up to 2 A on startup)

Communications:

• 1 x CAN at 1 Mbit/sec

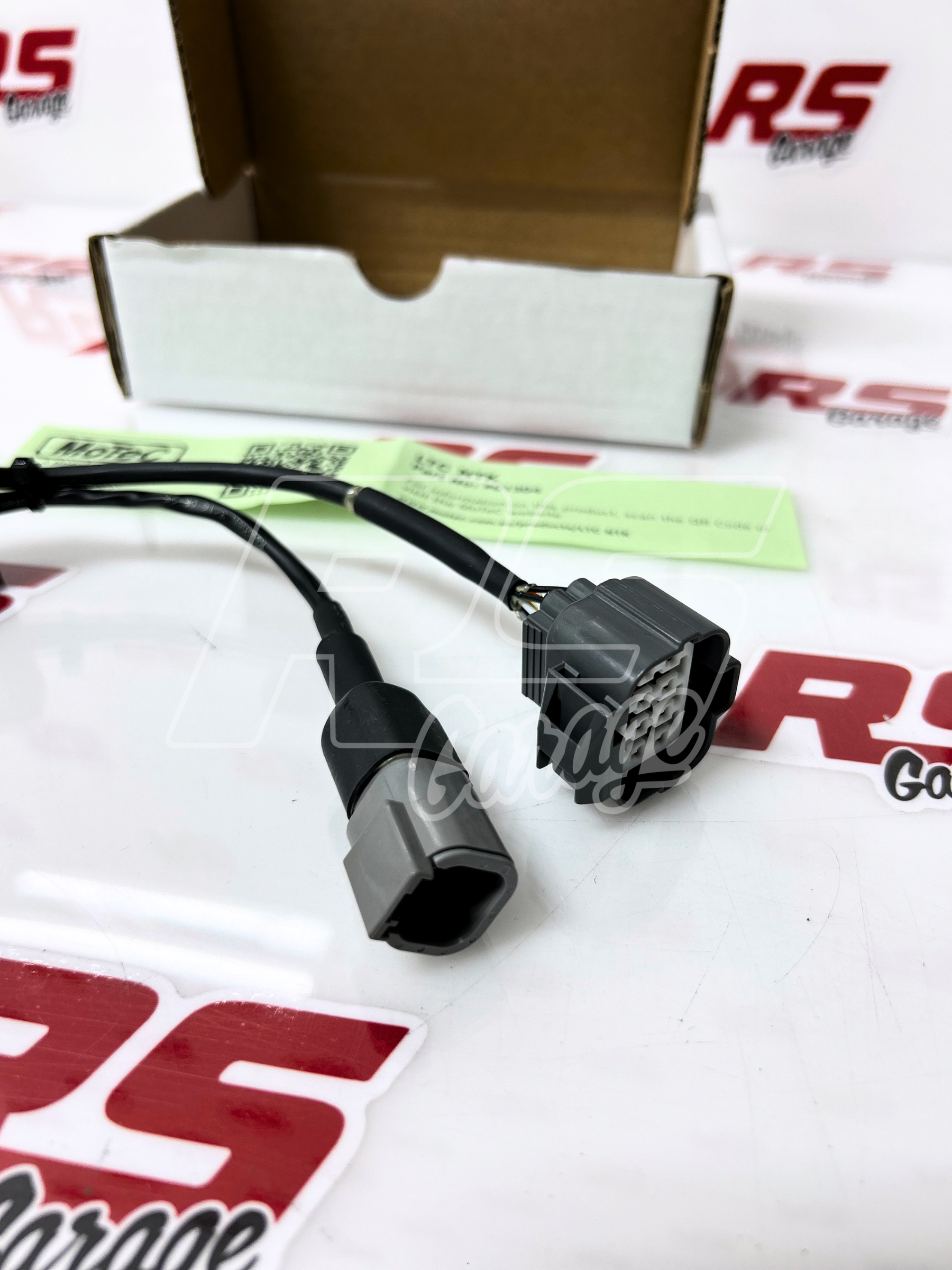

Connectors:

• 1 x 4 pin male DTM connector (power/CAN)
• 1 x mating connector for NTK Lambda sensor

Physical:

• Dimensions 38 x 26 x 14 mm excluding wiring looms and connectors
• Weight 62 grams
• Maximum ambient temperature 100 °C
