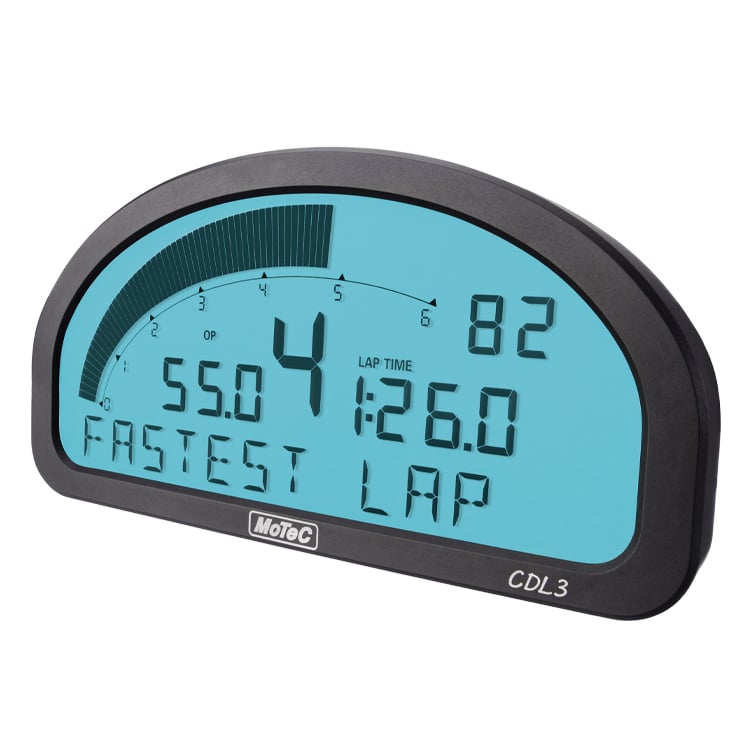

MoTec CDL3 Display Logger

The Club Dash Logger is a fully configurable backlit display, controller and logging device. It offers the same quality and advanced technology as our top of the line systems, with a package of features tailored to suit entry level motorsport requirements such as club racing. Comes enabled with logging and I/O at no additional cost!

The screen layout can be tailored to suit individual preferences and is able to display a large number of data channels, warning alarms, lap times, fuel calculations, minimum corner speeds, maximum straight speeds and more.

The CDL3 is available standalone or as part of MoTeC's CDL3 Track Kits.

Communications:

•2 x Configurable CAN or RS232 bus with individually programmable CAN bus speeds

•1 x Dedicated RS232

Physical:

•Dimensions 180 x 91 x 18 mm excluding connector

•Weight 385 g

•1 x 34 pin AMP connector

Inputs:

•4 x analog voltage high resolution inputs

•2 x analog temperature inputs

•2 x Digital inputs

•3 x Speed inputs with voltage measuring capability

•Compatible with E888 expander (8 Thermocouples only)

Outputs:

•4 x PWM, switched or digital outputs

Logging:

•8 MB logging memory

•Logging rates up to 500 samples per second

•Fast Ethernet download

Internal Sensors:

•3-axis G sensor

•Dash temperature sensor

•Sensor supply voltage

•Battery voltage
