Description
Manley Rod Bolt Recommended Torque w/30wt. Oil: 60 ft./lbs.
Recommended Rod Bolt Stretch w/30wt. Oil: .0058"-.0062"

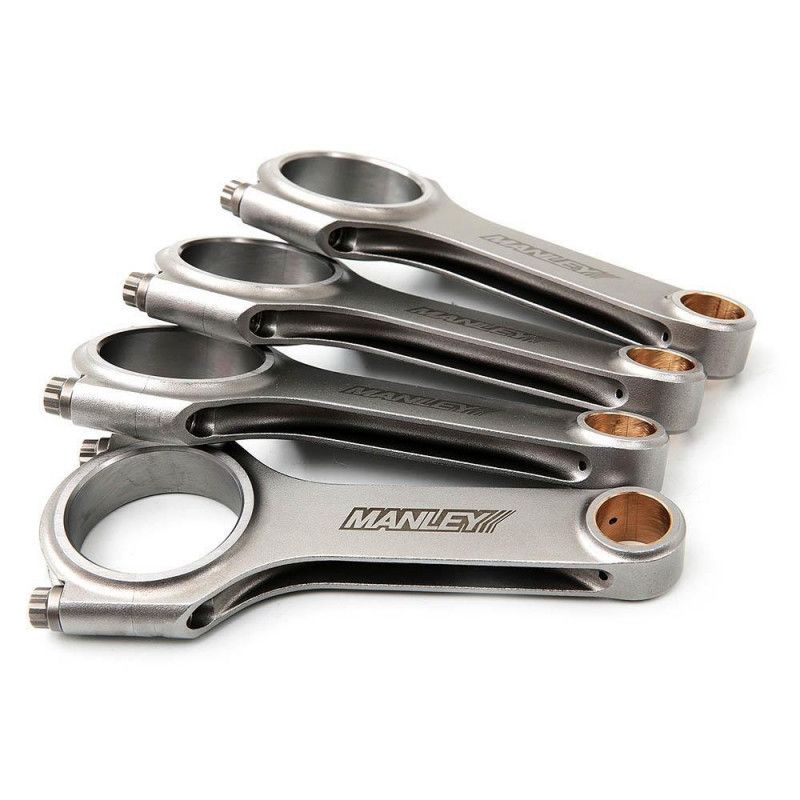

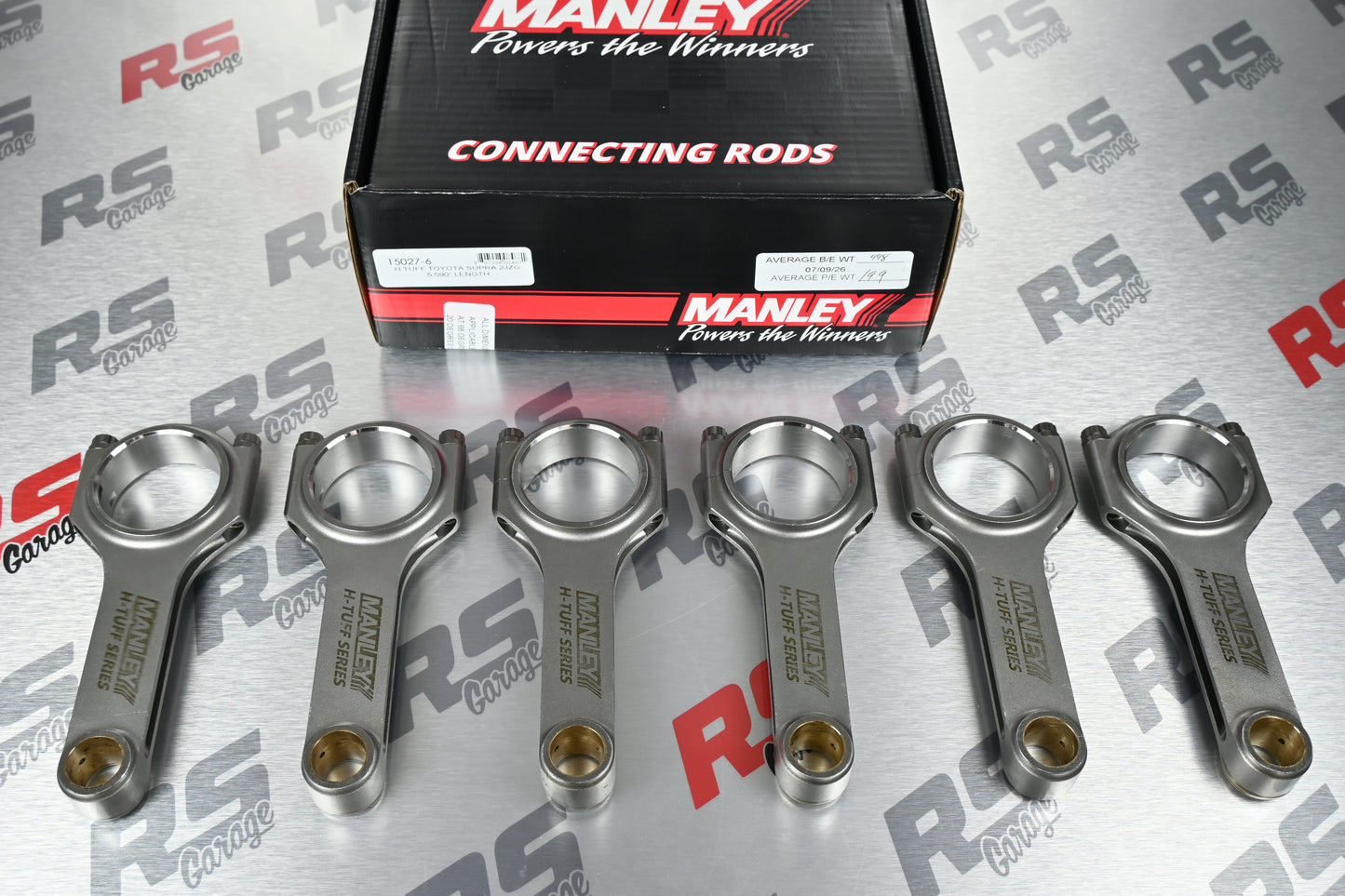

Manley "H Tuff" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled.
Features:
H-Tuff Series with heavier beam for higher boost applications
Manufactured from 4340 forgings
Heat treated, stress relieved, shot peened and 100% individually magnafluxed
Weight matched sets + 1.5 grams
Cap fasteners are 3/8" ARP 2000 for the”H” Beam and 3/8" ARP Custom Age 625+ for the H-Plus
