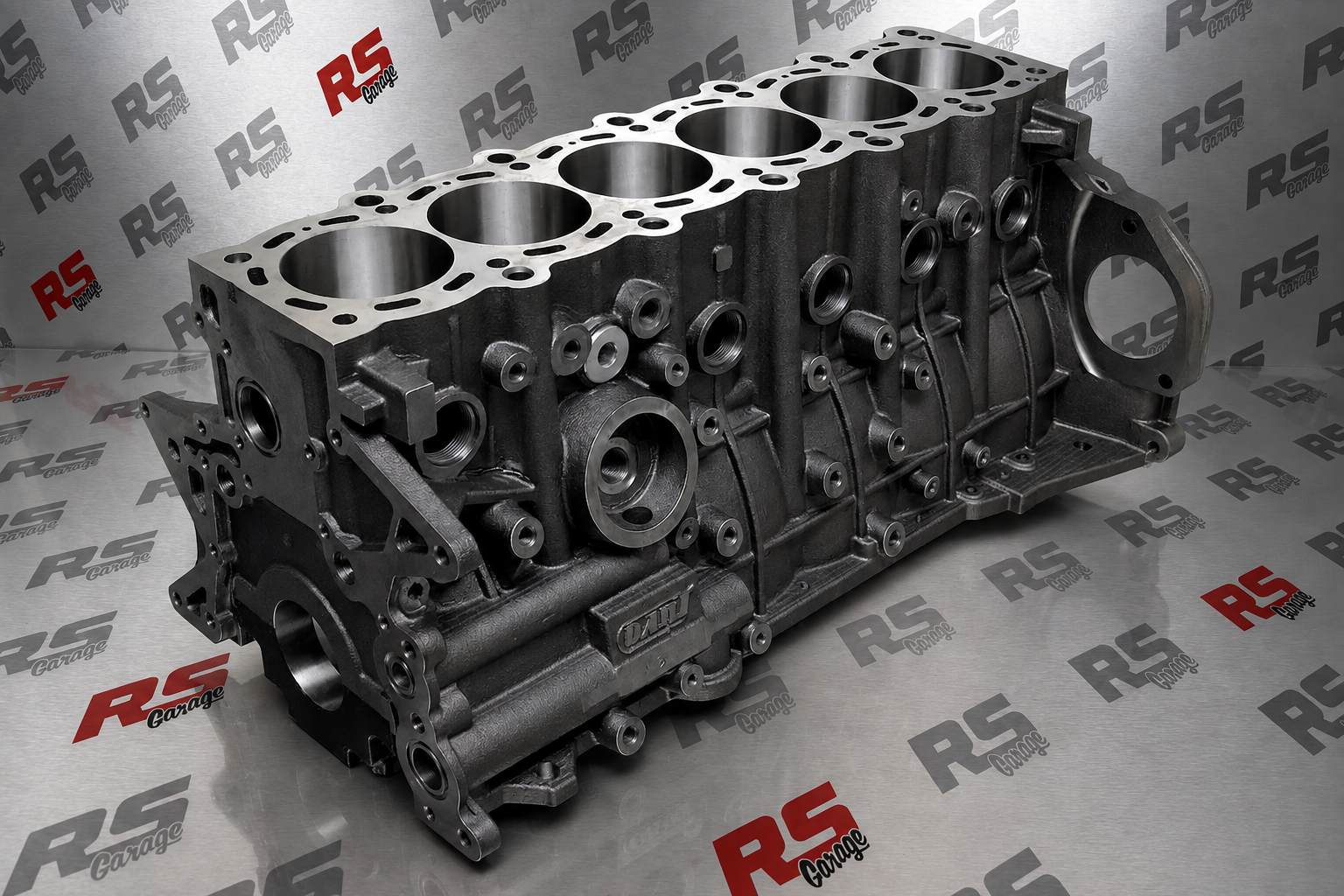

Dart 2JZ 220 BHN Cast Iron Eagle Block 2000HP+ 86mm Bore (88mm Max) With ARP Main Studs for 1/2 inch Head Studs 31011011

Dart’s Iron Eagle aftermarket block addresses the weaknesses of the legendary Toyota 2JZ engine, making it a ground-up upgrade for drag racing, time attack, drifting, and extreme street builds capable of supporting over 2,000 HP.

Key Enhancements & Engineering Features:

• Enhanced Structural Integrity: Upgraded to 4-bolt billet steel main caps (caps 1–6) with standard 12mm/10mm studs, vastly improving crankcase strength over the stock 2-bolt setup.

• Thicker Castings: Increased thickness across the cylinder walls, outer block case, and deck surface prevents flex and failure under high boost, ensuring a reliable head gasket seal.

• Superior Cooling: Scalloped water jackets optimize coolant flow around the thick, siamesed cylinder walls, complemented by machined screw-in freeze plugs.

• High-Performance Ready: Features blind 1/2" head bolt holes, provision for piston oilers, and optimized oil passages to clear up to a 94mm stroke (including clearance for aluminum rods).

• OEM Compatibility: Retains factory mounting points for the starter, water pump, oil pan, rear main seal, and oil filter setup.

Core Specifications:

• Material: 220 BHN Cast Iron | Weight: 162 lbs

• Bore: 86mm standard (88mm max)

• Deck Height: 8.625" (0.750" deck thickness)

• Max Stroke: 94mm

• Main Caps: Billet steel 4-bolt (#1–6), 2-bolt (#7)

Builder Notes: Always mock up moving assembly parts to verify rod-to-block and counterweight clearances (especially with 94mm stroke setups). Deburr main caps prior to reinstallation to maintain precise sizing. Clean, snug, and apply P1 TorquePoint Lube to studs—never over-torque studs directly into the blind holes.
