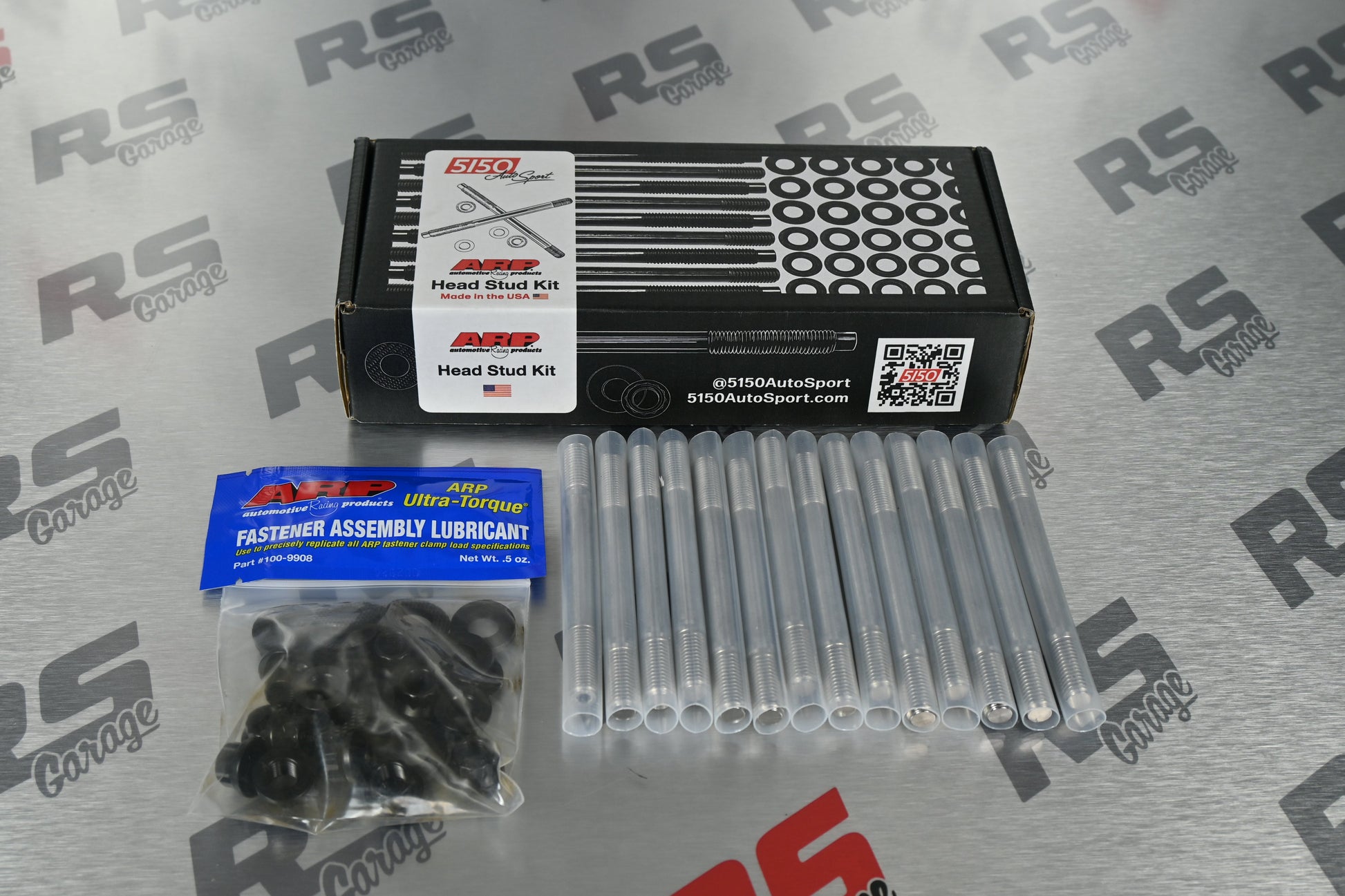

ARP-HSK-M50-CA ARP Head Stud Kit M50, 625+ Custom Age Material

Installation Instructions:

1. To ensure proper thread engagement and accurate torque readings, clean ALL threads in
   the block. Chase if necessary with ARP Thread Chaser.
2. Clean and inspect all hardware prior to installation. Look for obvious defects or shipping
   damages, plus proper fit, length and dimension.
3. If the cylinder head studs protrude into a water jacket, lubricate the block threads of the studs with ARP THREAD SEALER
4. Screw studs into the block “HAND TIGHT ONLY”
5. Install the cylinder head(s) and check for binding or misalignment
6. Lubricate the stud threads, nuts and washers with ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT
7. Then install the washers and the nuts onto the studs and tighten them hand tight. ARP recommends using the ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT that is provided with each kit as opposed to motor oil. This is due to higher friction on the studs as well as inconsistencies in the clamping force of the fasteners when motor oil or other low quality lubricants are used
8.  Following the manufacturers recommended torque sequence tighten the nuts steps 1-3

Custom Age 625+
Step 1: Tighten to 30 ft-lbs.
Step 2: Tighten to 60 ft-lbs.
Step 3: Tighten to 90 ft-lbs.
